1/2 Inch NPT Industrial Grade Three Stage Air Drying System, Particulate Filter, Coalescing Filter, Desiccant Dryer and Air Regulator, 0-240 PSI, Auto Drain

GCESSOIRY 1/2 Inch NPT industrial grade three stage air drying system (Automatic Drainage) can effectively filter impurities, dust, moisture and particles in the air regulating function. With pressures ranging from 0 to 240 PSI, you can pull the button on the filter and rotate It to reduce the pressure.Specifications:Air inlet size: 1/2" NPTMaterial: AluminiumPressure Range: 0-240 PsiOperating Temperature Range: 40-140F(5-60℃)Tips: The startup working pressure is 30 PSI, and for the initial operation, please maintain it above 30 PSI.Package Includes:1 x Three Stage Air Drying System 1 x Dial Gauge for the 1/4"1 x Nickel-plated Iron Air Plug1 x Nickel-plated Iron Air Coupler2 x 1/2" × 1/2" male brass equal hex nipples1 x 1/2 "Mini Ball Valve2 x PC-1/2-1/2NPT Male Connect Fitting2 x 5 Micron Element & 0.3 Micron Element(One of Them is Installed in the Product)4 x Desiccant Beads Bag1 x Teflon tape

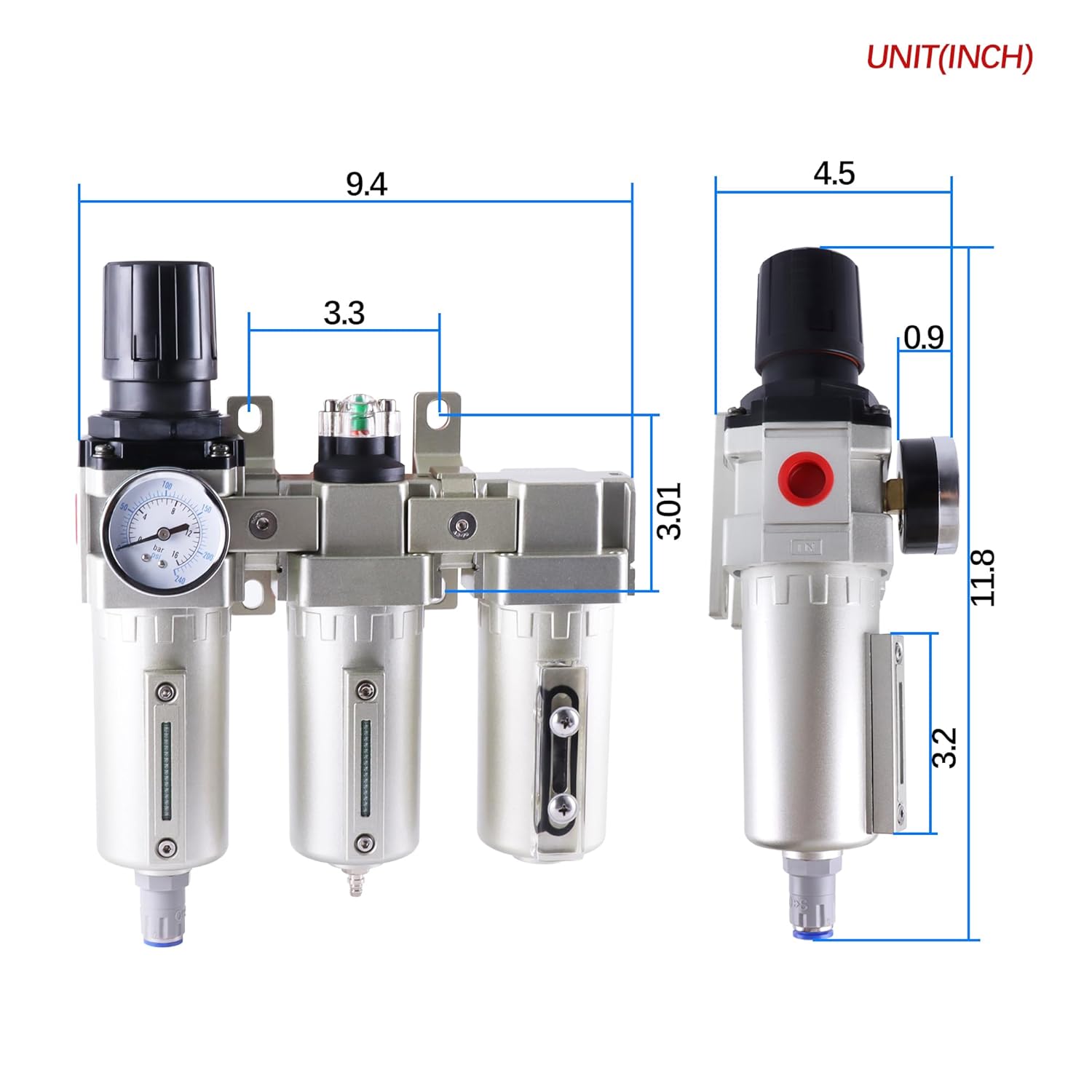

• Thread Size. The air drying system has two 1/2 NPT ports and one gauge port 1/4 NPT. Pressure Range. The pressure range is easily adjustable within 0-240 PSI. Temperature Range: 40-140℉ (-5-60℃）
• Stage 1 Regulator/Filter. The adjusting knob can precisely control the air pressure within the range of 0-240 psi. The knob will be locked when pressed to ensure safety during use. Equipped with a 5-micron element, it can filter out up to 95% of particles and moisture in the air
• Stage 2 Coalescing Filter. The coalescing filter is equipped with a 0.3-micron element that can remove 99.98% of moisture and impurities from the air line. A red indicator on the top window will pop out when the filter element needs to be replaced
• Stage 3 Desiccant Air Dryer. The air will pass through a metal bowl filled with desiccant, which can thoroughly dry and clean the moisture and impurities in the air, and finally output to downstream pneumatic tools. When the desiccant needs to be replaced, the beads will change from blue to pink
• Package Includes. 1x Three Stage Air Drying System, 1x Dial Gauge for the 1/4, 1x Nickel-plated Iron Air Plug, 1x Nickel-plated Iron Air Coupler, 2x 1/2 × 1/2 male brass equal hex nipples,1x 1/2 Mini Ball Valve，2x PC-1/2-1/2NPT Male Connect Fitting， 2x 5 Micron Element & 0.3 Micron Element(One of Them is Installed in the Product), 4x Desiccant Beads Bag, 1x Teflon tape
